Vertical round bottle labeling machine

The round bottle adhesive labeling machine is capable of labeling a wide range of container sizes and shapes, and can accommodate various label materials, including paper, vinyl, and plastic. The machine is commonly used in industries such as food and beverage, pharmaceuticals, cosmetics, and household chemicals.

Technical Parameter

Model BGJ-Y200
Labeling speed 30-40pcs/min
Labeling material Self-adhesive sticker, opaque or transparent label
Applicable product diameter 20-100mm
Applicable label size L:10-200mm,W:10-135mm
Labeling precision +/-1mm(exclude the product and label deviation)
Power supply 220V 50HZ
Overall dimension L2000mm×W850mm×H1400mm
Weight 250Kg

Electric Configuration

PLC FX3sA-30MT/Mitsubidhi
Touch Screen TK6070iP/Weinview
Sensor D10BFP/Banner
Labeling Motor 2S86Q-030B8/KINCO
Labeling Motor Drive 2M860/KINCO
Converyor Motor D63B14-0.18KW+FB/Li-ming
Frequency converter S800-2S0.4G/SAVCH
Emergency Stop XB2-BS542/Omron
Relay LY2N-J 24VDC/Omron

Machine Introduction&Features

The fully automatic vertical round bottle labeling machine is extensively used in various industries, such as food, medicine, cosmetics, daily chemicals, electronics, hardware, and plastics. It is designed to label or attach films to products with round surfaces, including PET and plastic round bottles, canned foods, and more. It supports full-circle and semi-circle labeling and can be optionally equipped with an automatic turntable bottle sorting machine to enhance efficiency by automatically feeding bottles into the labeling machine from the front-end production line.

RBALM Machine Feature
Applicable industries

Food, medicine, cosmetics, daily chemicals, electronics, hardware, and plastics.

Applicable product range

PET and plastic round bottles, canned foods.


Can support wrap round labeling or semi-circle labeling.

High-quality construction

The main materials of the equipment are stainless steel and high-grade aluminum alloy, with a solid and elegant overall structure,simple operation and maintenance.

Expandable label printing options

The equipment can be expanded to include label printing systems such as thermal transfer printing, thermal inkjet, continuous inkjet, or hot stamping devices.

Efficient online coding and labeling

Additionally, the color ribbon coding and labeling machine can be configured to print production dates and batch numbers online, reducing bottle packaging processes, and increasing production efficiency.

Product Gallery

Sample 1
Sample 2
Sample 3
Sample 4
Sample 5
Sample 6

Product Details

  Name Description

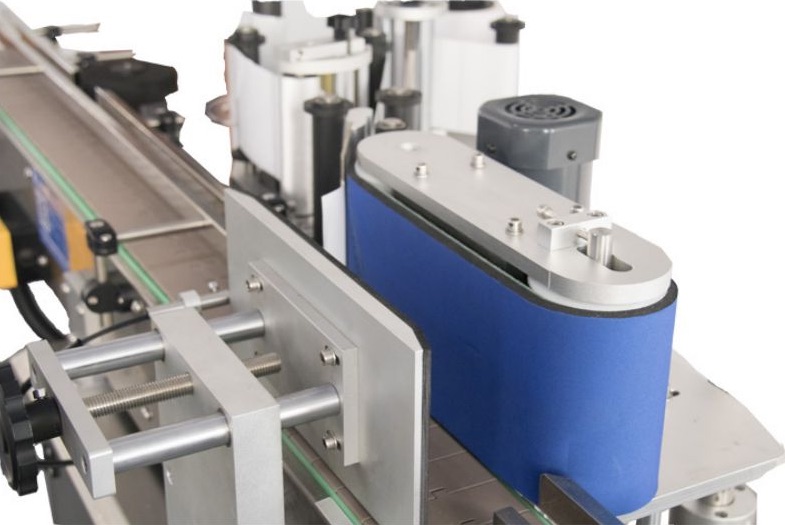

Spoke Guard Mechanism It is a label supporting plate which provides support and stability to the label during the labeling process, ensuring that it adheres smoothly and evenly to the product's surface. This helps to prevent any wrinkles or creases from forming, ensuring a neat and professional appearance.
Label Roll Holder The Label Roll Holder features a spindle or mandrel that is adjustable to accommodate different label roll sizes and widths. It is also designed to minimize tension and prevent the labels from wrinkling or jamming during the dispensing process.
Labeling Head This is the part of the machine that applies the label to the product. The labeling head typically includes a labeling mechanism that dispenses the label onto the product and a conveyor that moves the product through the machine.
Touch Screen The touch screen is equipped with intuitive and responsive controls that allow operators to adjust various parameters such as labeling speed, label placement, and label size. It may also feature advanced functions such as automatic label detection, label counting, and error logging.
Conveyor System It is an important component, which transports the products to be labeled from one position to the labeling position, ensuring smooth transportation of the products and accurate labeling.can be adjusted and customized according to the size and shape of different products.
Electrical Control Cabinet The Electrical Control Cabinet of the adhesive labeling machine is an essential component that houses the electronic control system responsible for regulating and monitoring the machine's operation. It typically consists of a metal enclosure that is designed to protect the sensitive electronic components from damage and environmental factors.


Our labeling machines are versatile and can label a variety of products, including round objects,suqare objects and objects with flat surface etc.

There are sleeve labeling machine,hot melt glue labeling machine,self-adhesive labeling machine and cold glue labeling machine,can meet your different labeling request.

Yes, our labeling machines are compatible with various container materials, including plastic, glass, and metal.

Yes, it can handle various label sizes and shapes, including wrap-around, front and back, and top and bottom labels.

Our labeling machines use advanced sensors and precision mechanics to ensure accurate label position, even on irregularly shaped containers.

Yes,our engineer will provide free design for your checking before make the final quotation.

Lead time varies depending on the specific machine and production schedule, but typically takes 6-8 weeks.

We accept a variety of payment methods, including wire transfer, credit card, and PayPal.

We offer online technical support and troubleshooting services for the lifetime of our machines, as well as parts and service support.

Yes, we provide free online training for machine operation and maintenance to ensure our customers can use and maintain machines effectively.

We offer a 1-year warranty for all of our machines, with additional warranties available upon request.
