Low-Speed Shrink Packing Machine
The Low-Speed Shrink Packing Machine is suitable for packaging a wide range of products, including bottles, cans, and other items, and is often used in industries such as food and beverage goods.
Technical Parameter
| Model | MB-10 |
| Speed | 10-12packs/min(500ml bottle) |
| Conveyor Width | 304mm |
| Shrink Chamber | L1800mm x W650mm x H450mm |
| Shrink Temperature | 140℃-200℃ |
| Packing Form | 3*4, 4*6,or customized as your request |
| Max Packing Size | L600mm x W400mm x H350mm |
| Packing Material | LDPE |
| Film Requirment | Film roll width less than 580mm, thickness 0.04-0.10mm roll diameter less than 400mm |
| Air Consumption | 300NL/min |
| Working Voltage | 3Phase 5Line,380V 24KW |
| Working Pressure | 0.6-0.8Mpa |
| Machine Size | L6500xW3200xH2100mm |
Electric Configuration
| PLC | B&R/Austria |
| Touch screen | B&R/Austria |
| Servo motor | B&R/Austria |
| Film feeding motor | B&R/Austria |
| Spindle motor | B&R/Austria |
| Cutter servo motor | B&R/Austria |
| Frequency | Schneider/France |
| Contactor | Siemens/Germany |
| Intermediate relay | Schneider/France |
| Photoelectric | AUTONICS/Korea |
| Cylinder | FESTO/Germany |
| Pressure regulating valve | SMC/Japan |
| Conveyor gear motor | SEW/Germany |
Machine Introduction&Features
Shrink wrapping is a process that uses heat-sensitive films to tightly wrap various products such as beer, beverages, purified water, fruit juices, dairy products, etc. Shrink wrapping equipment is designed for fully automated packaging production lines for these products.
Shrink packaging tightly conforms to the surface of the product, resulting in a neater and more professional appearance, enhancing product display and market competitiveness.
The fully automated shrink wrapping equipment features processes such as conveying, bottle orientation, film wrapping, sealing, cutting, shrinking, and cooling.
It utilizes advanced film temperature-controlled sealing technology for clear and sturdy sealing.
The PLC program provides automatic cyclic control for stable and reliable performance.
Original imported guide rod cylinder ensures accurate movements and durability
The self-developed shrink tunnel has two sets of centrifugal hot air circulation systems for balanced and uniform heat distribution, resulting in tight and aesthetically pleasing shrink wrapping.
Shrink packaging typically uses thin and economical films, which can reduce the amount of packaging materials compared to traditional packaging methods, lowering packaging costs and environmental impact.
Shrink-wrapped products showcase the appearance and label information, making it easy for consumers to observe and identify the products, while also being convenient for carrying and storage.

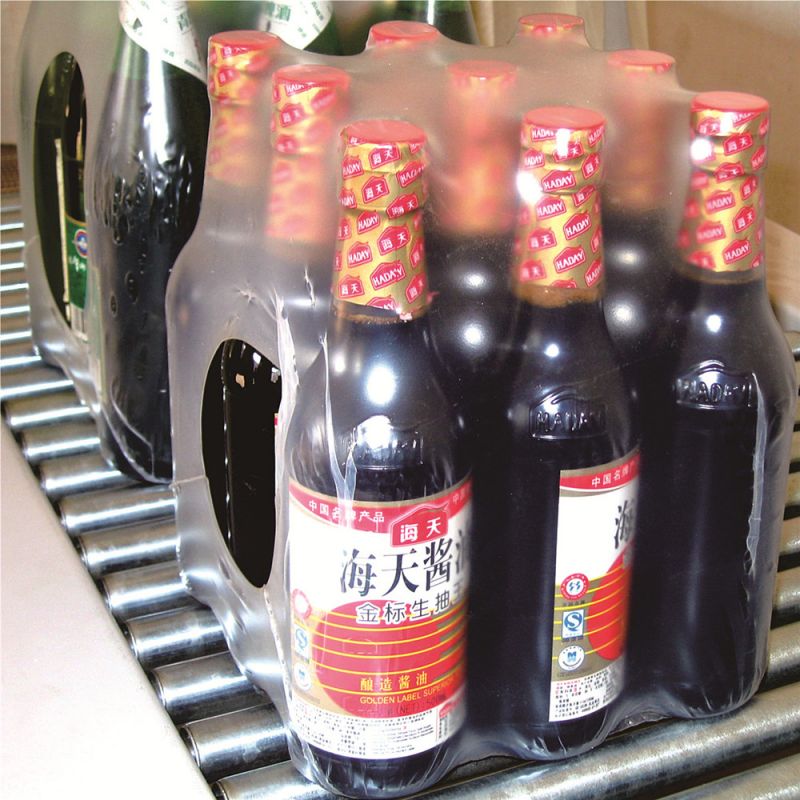

Product Gallery
Product Details
| Name | Description | |
|---|---|---|
 |
Bottle Feeding Conveyor | The bottle conveyor is composed of rolling guardrail, bottle separating plates, and multi-section conveyor belts, which are used to separate bottles. |
 |
Bottle Sorting Device | It is used to group bottles according to packaging requirements, and then push the grouped bottles forward. |
 |
Shrink Film Wrapping Device | Automatically wrap the shrink films onto the grouped bottles,and cutter the film. |
 |
Shrink Tunnel | The shrink tunnel consists of a heating and shrinking section, which is responsible for heating and shrinking the wrapped packaging materials. Uses heat to uniformly shrink the film at a set temperature, tightly conforming it to the surface of the bottles. |
 |
Cooling Device | Enhanced cooling shaping passage quickly turns the packaging membrane into a high-strength status for convenient storage and transportation. |
 |
Conveyor System | Transfer fully packaged items onto a gravity conveyor; the gravity conveyor can serve as temporary storage for easy stacking or handling by personnel. |
FAQs
Our labeling machines are versatile and can label a variety of products, including round objects,suqare objects and objects with flat surface etc.
There are sleeve labeling machine,hot melt glue labeling machine,self-adhesive labeling machine and cold glue labeling machine,can meet your different labeling request.
Yes, our labeling machines are compatible with various container materials, including plastic, glass, and metal.
Yes, it can handle various label sizes and shapes, including wrap-around, front and back, and top and bottom labels.
Our labeling machines use advanced sensors and precision mechanics to ensure accurate label position, even on irregularly shaped containers.
Yes,our engineer will provide free design for your checking before make the final quotation.
Lead time varies depending on the specific machine and production schedule, but typically takes 6-8 weeks.
We accept a variety of payment methods, including wire transfer, credit card, and PayPal.
We offer online technical support and troubleshooting services for the lifetime of our machines, as well as parts and service support.
Yes, we provide free online training for machine operation and maintenance to ensure our customers can use and maintain machines effectively.
We offer a 1-year warranty for all of our machines, with additional warranties available upon request.
