Single head sleeve labeling machine

Shrink sleeve applicators with tunnels, sleeve labelers for bottle bodies, and neck sleevers can be used to label bottles and cans of various shapes and sizes, including glass and plastic bottles, filled and empty bottles, and aluminum cans.

Get Instant Quote

Features & Benefits

Running with cosmetic , food & beverage bottle , water bottle, fruit juice bottle, tea drinks, dairy bottle and jar products, pure water bottle, condiments bottle, beer and sports drink bottle etc.

This feature ensures that the machine only applies the sleeve or label when a bottle is present, which helps to save materials and reduce waste.

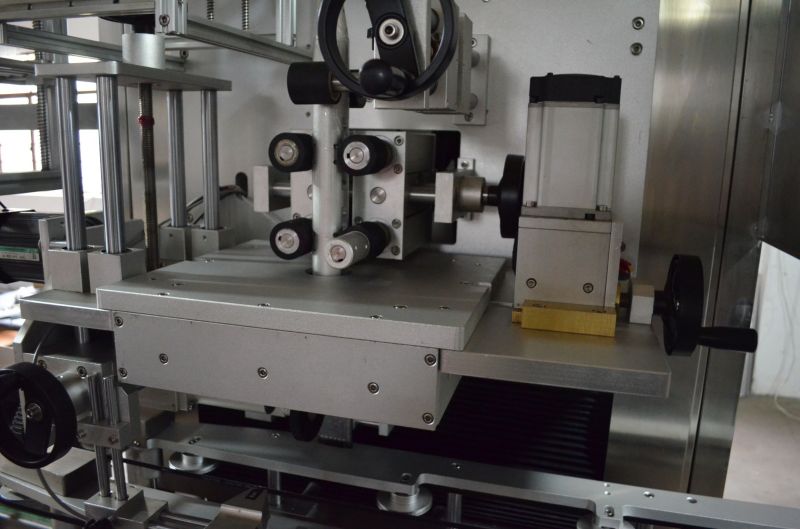

This system allows the machine to cut the sleeve label accurately, which ensures that the label fits perfectly on the bottle.

The speed of the machine can be adjusted depending on the cut length of the sleeve. It can handle a wide range of bottle sizes and shapes.

Servo driven output for fast and accurate delivery.

Easy to use touch screen display with job memory.

It is used to detect printed marks on the sleeve or label, which ensures that the machine cuts the sleeve label accurately.

Applications where Single head sleeve labeling machine is used

  • Sample 1
  • Sample 2
  • Sample 3
  • Sample 4
  • Sample 5
  • Sample 6

    Products Parts

    Bottle Feeding Device

    Automatically separate the bottle via a bottle divider to transport the bottles at equal distances, to facilitate the insertion of labels.

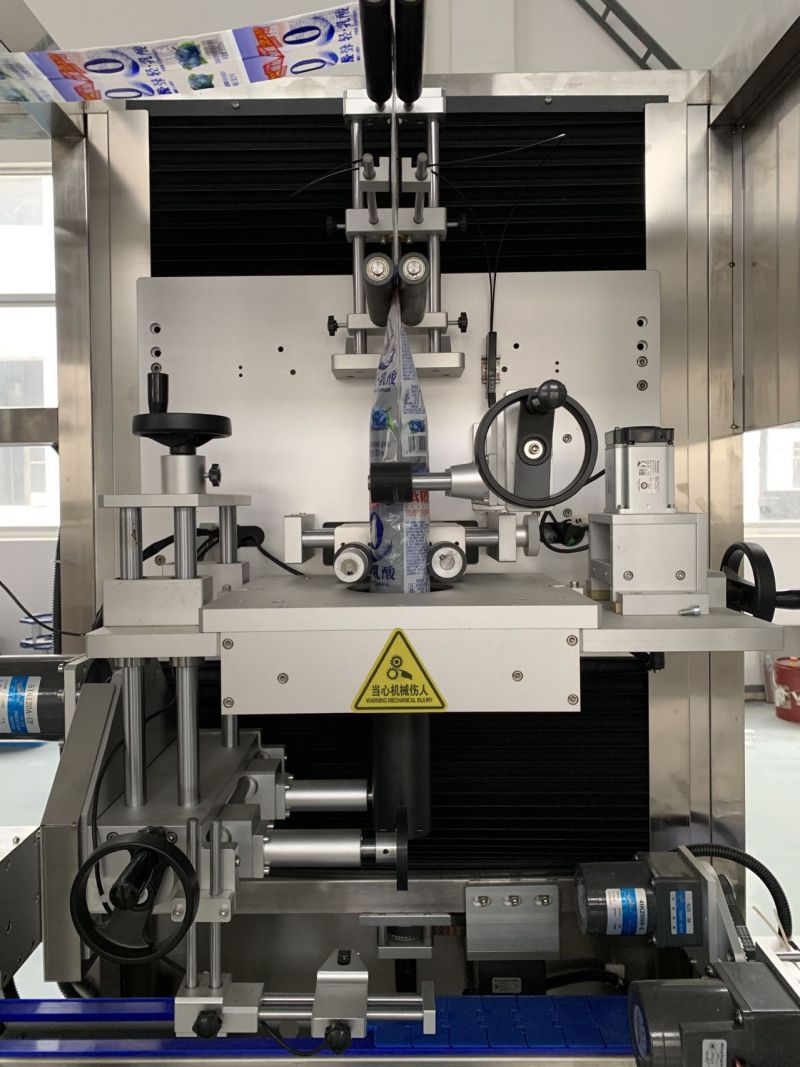

    Center Pillar

    Insert the shrink sleeve label material into the expanding device, so that the film material can be transported and cut.Needs to be changed according to different bottle diameter.

    Bottle Carrying Unit

    Both sides rotate synchronously, and the height and bottle clamping position are adjusted by only one handwheel on each side, so that the bottles do not shake during transportation and the setting of label insertion height is facilitated.

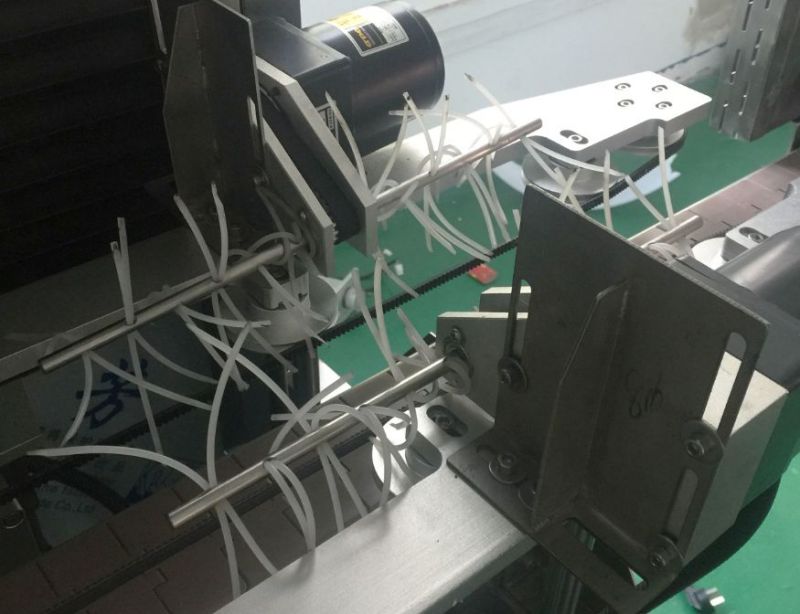

    Brushing Unit

    Using rubber brush, the labels attached to the bottles are brushed and positioned.

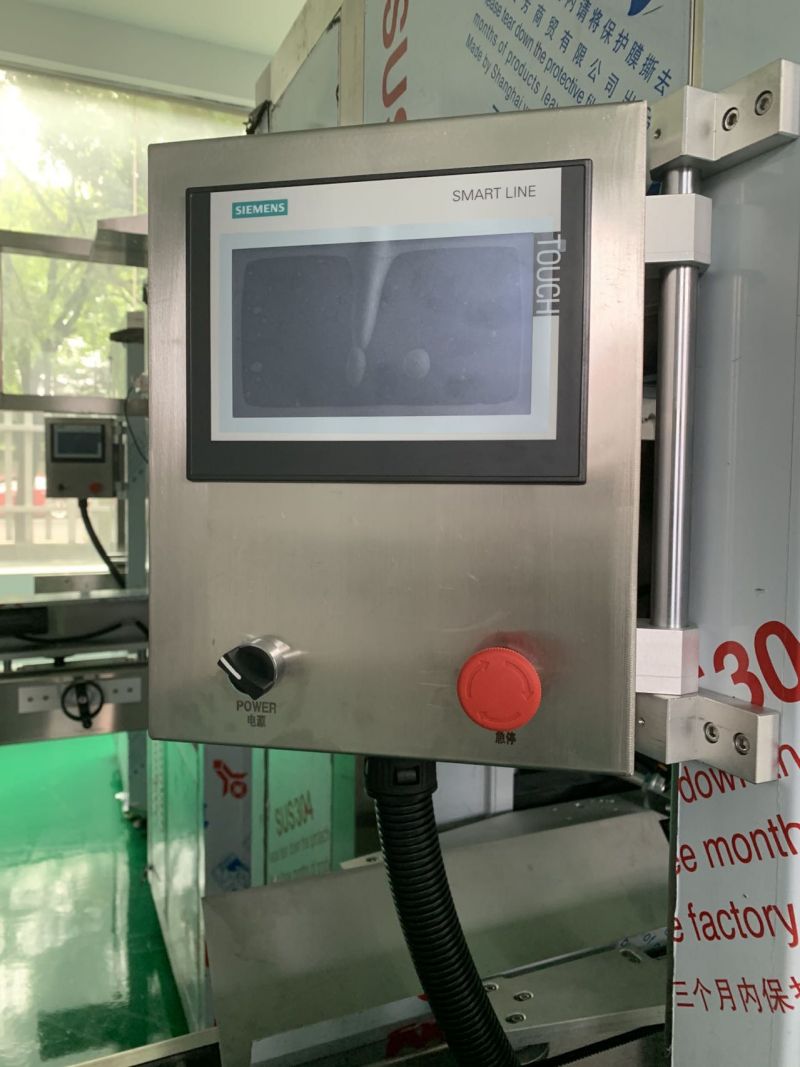

    Touch Screen

    By utilizing an LCD touch screen design and an intelligent operating system with PLC control, we can ensure that the machine provides quick and accurate feedback.

    Specification

    Technical Parameter
    Model TB-S150/S250/S350
    Labeling speed 150pcs/min/250pcs/min/350pcs/min
    Labeling material PVC,PET,OPS
    Applicable diameter of bottle Ø28- Ø125mm
    Applicable height of bottle 30mm-280mm
    Applicable label length 30-250mm
    Applicable label thickness 0.027mm-0.13mm
    Transparent label length More than 5mm
    Internal diameter of paper tube Around 4“(101.6mm)
    Outside diameter of paper tube Less than 500mm
    Power supply 1.5-5KW,220V 50HZ 1PH
    Overall dimension L2300mm×W550mm×H1500mm
    Weight 1200Kg



    Electric Configuration

    PLC Panasonic/Japan
    Touch Screen Weinview/Japan
    Sensor SICK or Pansonic/Germany Japan
    Servo system Panasonic/Japan
    Transducer Schneider/France
    Small power AC motorc STS/Taiwan
    Low-voltage apparatus Schneider/France
    Bearing NSK/Japan
    Timing belt GATES/USA
    Frame SUS304(Food Grade)/Shanghai
